Product Advantages
Flexible & Convenient: No civil construction or permanent installation is required.
The ramp can be moved to different loading points at any time, meeting multi-zone and multi-vehicle handling needs. It is especially suitable for temporary loading or highfrequency cargo transfer scenarios.
High Efficiency & Energy Saving: Compared with traditional manual handling or fixed ramps, the mobile dock ramp increases loading efficiency by 3–5 times, significantly reducing operation time and labor costs. The hydraulic drive system operates with low
energy consumption and high stability.
Safe & Reliable: The anti-slip surface, safety rails, and multiple protective features ensure secure operations. Adjustable support legs provide solid stability, preventing shaking or deformation under heavy loads, thus avoiding cargo spillage and equipment tipping risks.
Strong Adaptability: The adjustable lifting height allows compatibility with different types of trucks (box trucks, container trailers, standard trucks, etc.) and loading docks, making it suitable for a wide range of applications.
Structure & Working Principle
(1) Core Structure

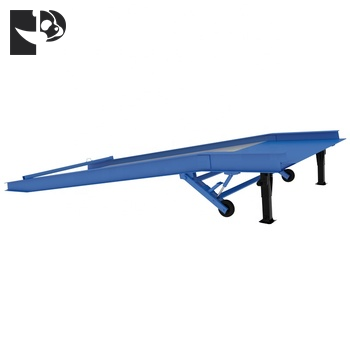

Bridge Body: High-strength welded steel with anti-slip checkered plates. Typical size 6–12m (L) × 1.8–2.2m (W), load capacity 3–10 tons.

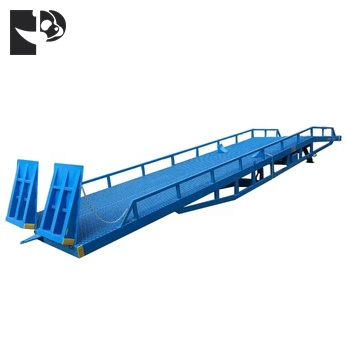

Hydraulic Lifting System: Pump, cylinders, and valves for smooth lifting, range 1.2– 1.8m to suit various trucks. Mobility & Support System: Equipped with wheels for movement; support legs with anti-slip pads ensure stability. Guardrails & Safety Devices: Guardrails, anti-fall chains, and emergency stop functions provide reliable protection.
(2) Working Principle

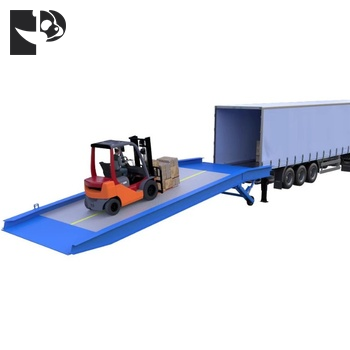

After the truck parks, the ramp lip is lowered onto the truck bed. The bridge is adjusted to the right height, creating a smooth passage for forklifts. Once operations fnish, the ramp is lowered, legs retracted, and it can be moved to the next point.
Application Scenarios
Logistics Warehousing: For warehouses without fxed docks, enabling fast transfer and higher effciency.
Factory Workshops: Smooth movement of raw materials and fnished goods, supporting production fow.
Ports & Terminals: Temporary cargo transfer between vessels and docks, fexible positioning for different ships.
Exhibition Sites: Quick loading/unloading of large amounts of materials, saving time and labor.
