PD-IDS
PANDA
7610100000
Definition & Core Function

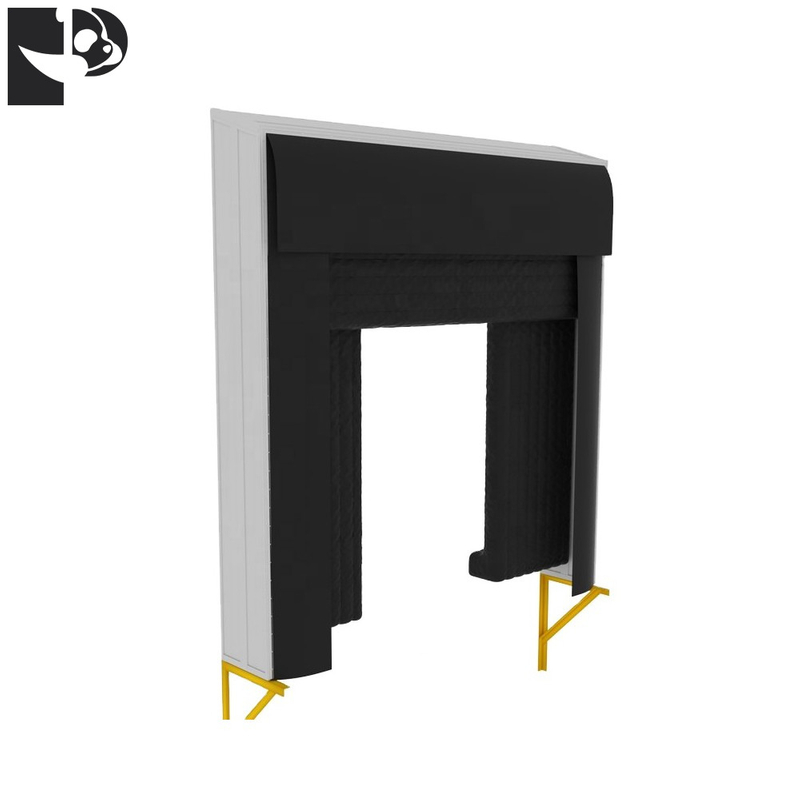

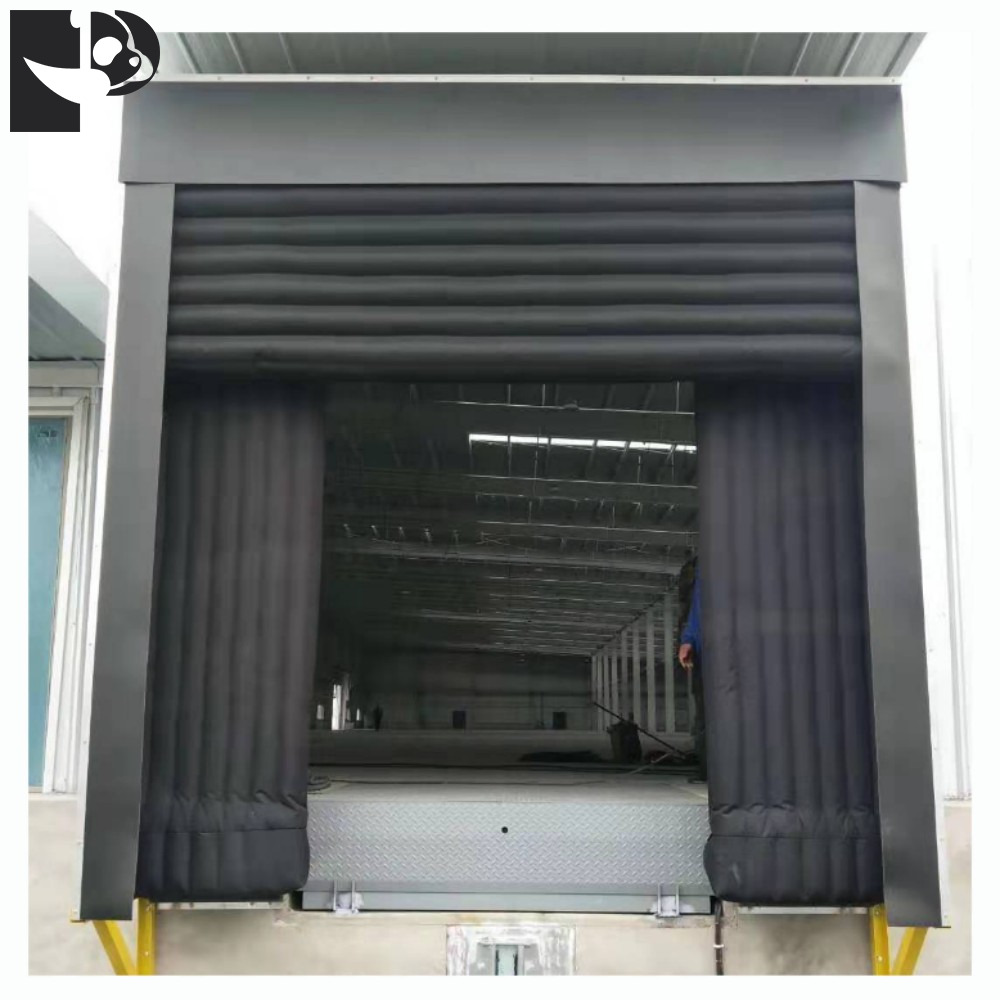

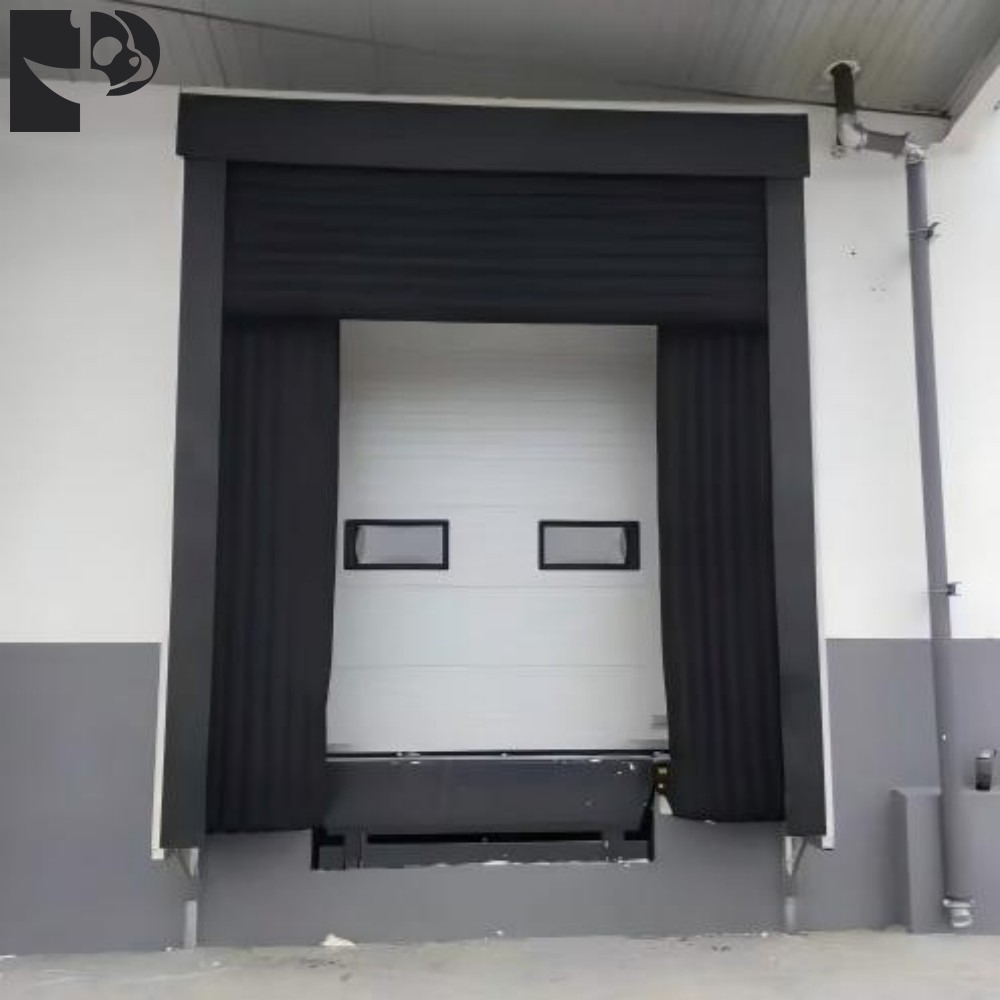

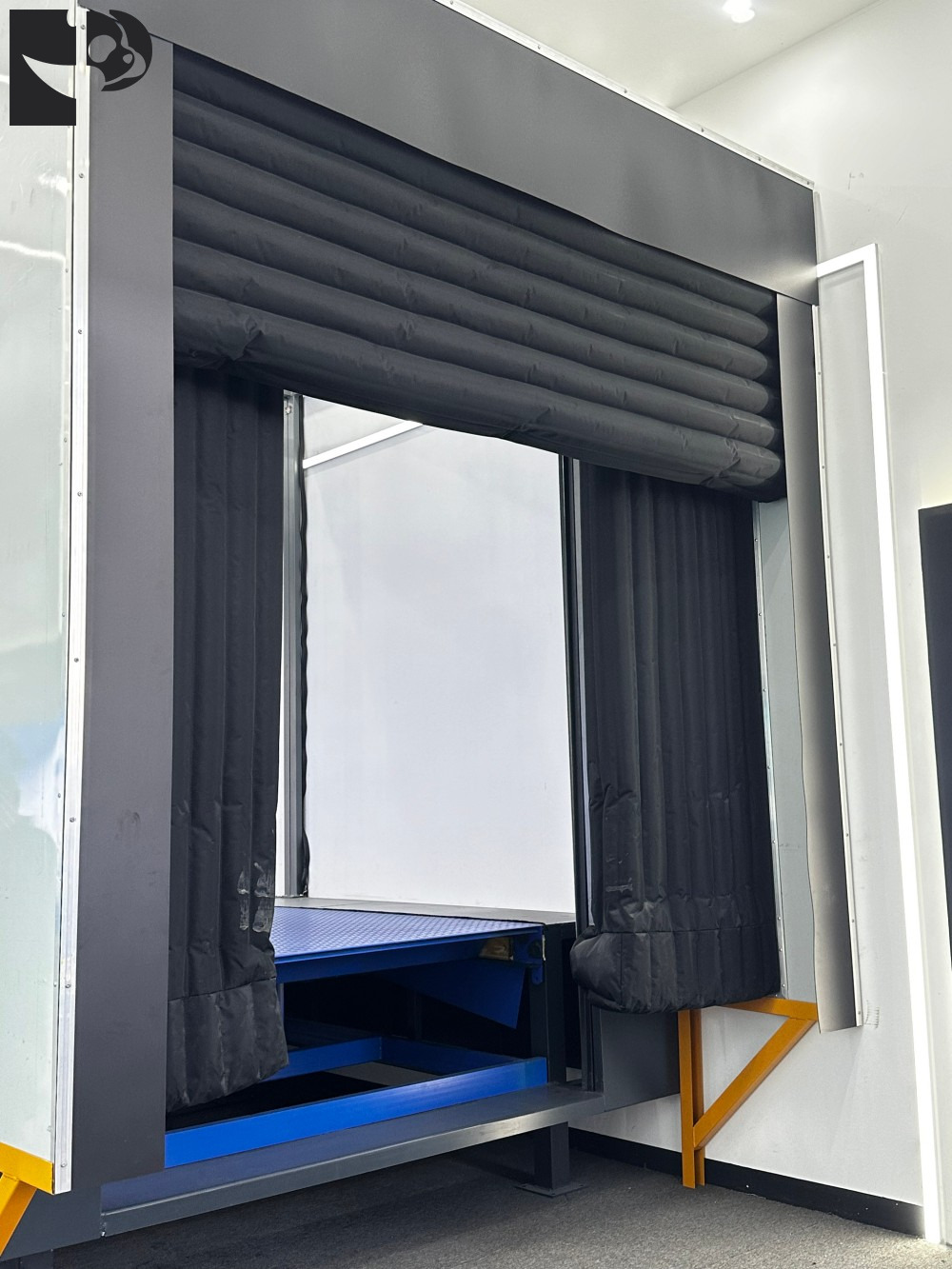

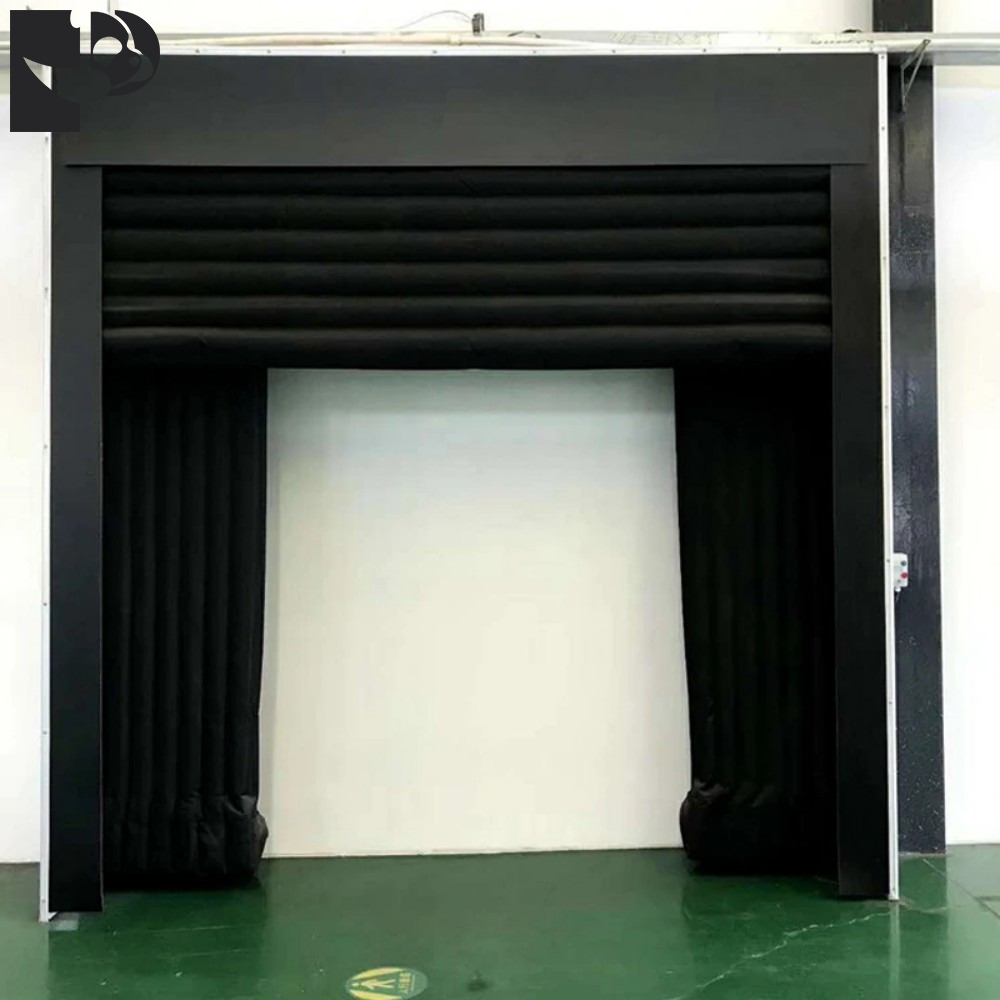

Inflatable Dock Shelter is a door accessory that achieves a sealing effect through air inflation. It is primarily installed around the perimeter of doors, such as industrial doors, cold storage doors, or dock leveler doors. Its core functions include:
Sealing & Isolation: Fills the gaps between the door and door frame, preventing air leakage, dust ingress, noise transmission, and insect entry.
Thermal Insulation & Energy Saving: Reduces heat or cold loss in cold storage or cleanroom environments, lowering energy consumption.
Environmental Protection: Suitable for industrial or commercial environments requiring constant temperature, dust-free conditions, insect prevention, or odor control.
Inflation: Air is pumped into the internal air chambers of the dock seal using a built-in air pump, pneumatic system, or electric device, causing the seal to expand and press tightly against the door edges.
Sealing State: Once inflated, the elastic materials (such as rubber or PVC-coated fabric) fill the gaps, forming an effective sealing barrier.
Deflation & Retraction: When the door opens, the air chambers automatically deflate and retract to avoid obstructing passage.
| Dimensions WxH | Top Extension | Side Extension | Blower Power | Air Tightness | Sealing Performance |
|---|---|---|---|---|---|
| 3400x3400 | 1200mm | 800mm | 800mm | 380v/220v | 95% |
| 3400x3600 | 1200mm | 800mm | 800mm | 380v/220v | 95% |
| 3400x3800 | 1200mm | 800mm | 800mm | 380v/220v | 95% |
| 3600x3800 | 1200mm | 800mm | 800mm | 380v/220v | 95% |
Note:
Please inquire about customization for other sizes.
Yes, our dock levelers and dock shelters can be made with corrosion-resistant materials (e.g., galvanized steel, stainless steel) and special coatings, suitable for cold chain, chemical, or other specific environments. Please share your requirements, and we’ll recommend the appropriate configuration.
We provide standard-sized dock shelters suitable for most trucks. Custom dimensions are also available to meet your specific loading and unloading needs. Please share the dimensions of your door opening, trucks and working environment, and we’ll design the right product for you.
Yes, our products are CE-certified (suitable for the European market) and comply with ISO9001 quality management system standards. If you require additional certifications (e.g., UL, GS), we can assist with the application process.
