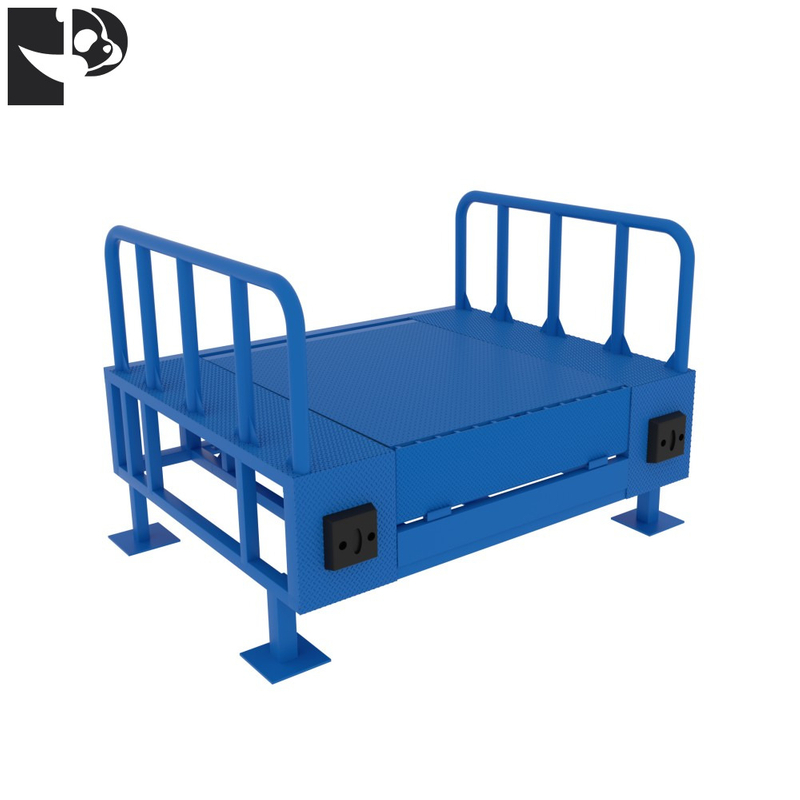

Frame Dock Leveler

Fast Installation for Retrofit & Overseas Projects

Self-supporting steel frame, no complex civil work
Pre-assembled for quick on-site installation
Ideal for warehouse renovation
Reduces construction uncertainty

Quantity:
Availability:





Inquire Add to Basket

Model:
PD-FDL
Brand:
PANDA
Code:
8428909090

dock seals Dock Leveler loading dock equipment dock shelter industrial door

Product Introduction

Technical Parameters

FAQ

Structural Features

In modern logistics and construction industries, efficient and safe cargo handling is of paramount importance. As a key piece of equipment, the external frame dock leveler plays an indispensable role in various scenarios, significantly enhancing both efficiency and safety during loading and unloading operations. The following section provides an in-depth analysis of its characteristics.

Working Principle

When a truck docks at the platform, the external frame dock leveler comes into play. If the platform is equipped with lifting functions, its height can be precisely adjusted through hydraulic or airbag power systems, ensuring seamless alignment with the truck bed and eliminating height differences.

For example, a hydraulic dock leveler uses a hydraulic pump to press hydraulic oil into the cylinder, driving the platform to rise or lower. Its adjustment range is highly fexible — the standard leveler typically offers a vertical adjustment of up to ±300 mm, while specially designed models can reach up to ±450 mm. This adaptability allows it to accommodate different truck models and dock heights. Subsequently, handling equipment (such as forklifts, pallet trucks, etc.) can directly drive onto the platform and enter the truck compartment for cargo loading and unloading, enabling effcient and convenient cargo transfer.

Equipment Size WxL	Equipment Width W	Equipment Length L	Equipment Height H	Height of Guardrail
W1800xL2000	2800mm	2100mm	1000-1300mm	800mm
W2000xL2300	3000mm	2400mm	1000-1300mm	800mm
W2000xL2500	3400mm	2600mm	1000-1300mm	800mm

Note:

Large-load capacity can be customized upon inquiry.
Custom sizes, including non-standard dimensions, are available.
"Dynamic load" refers to the load when the platform board is carrying cargo and the forklift is moving on the platform.
"Static load" refers to the load when the platform is in a reset/closed state and the forklift is moving on the platform.
Anti-Corrosion Process: Shot blasting + electrostatic powder coating + high-temperature baking finish.
Optional Configurations: Single main hydraulic cylinder (X1) / Double main hydraulic cylinders (X2)

What cooperation terms do you offer?

We support international trade terms such as EXW, FOB, CIF, and we offer door-to-door service. Just provide your detailed address, and we will arrange the most efficient logistics solution for you.

How many pieces fit in a container?

A 20ft container typically holds 6 dock levelers, and a 40ft container can hold 16-20 units, depending on product size and configuration.

What packaging options do you offer?

We use sturdy export-standard packaging. For LCL shipments, we use wooden crates, and for FCL shipments, we use steel frames.

What are the shipping methods, and how are the costs calculated?

We offer various shipping options, including sea freight, air freight, and land transportation. Shipping costs are calculated based on the product’s volume, weight, and destination.
