Views: 0 Author: Site Editor Publish Time: 2026-09-15 Origin: Site
Facility managers constantly balance conflicting operational demands on the warehouse floor. You need to maximize logistical throughput while maintaining strict environmental control across different temperature zones. Selecting the wrong industrial door creates hidden operational bottlenecks that compound daily. Forklift traffic slows down when doors operate too slowly, causing staging area congestion. Energy loss spikes during active loading operations, forcing HVAC systems to work overtime. Frequent maintenance downtime disrupts shipping schedules, and facility security becomes compromised when doors fail to close properly.
Two primary solutions exist for commercial and industrial facilities. You can install a High Speed Door or a traditional sectional door. The right choice depends entirely on cycle frequency, thermal requirements, spatial constraints, and weather exposure. Upfront capital alone should never dictate your facility infrastructure decisions. You must evaluate how the door's mechanical design aligns with your daily material handling workflows and long-term maintenance capabilities.
Traffic & Throughput: High speed doors are engineered for continuous, high-volume traffic (often exceeding 100+ cycles per day), whereas sectional doors are designed for lower-frequency access points.
Thermal Efficiency: Sectional doors generally offer superior static insulation (higher R-value and lower U-value), but high speed doors minimize air exchange and energy loss during active operational hours due to rapid open/close cycles.
Space & Footprint: High speed doors utilize a compact, versatile rolling mechanism ideal for limited headroom, while sectional doors require extensive ceiling track space.
Cost & Maintenance Dynamics: Sectional doors require a lower initial capital investment and offer a wider variety of aesthetic features; however, high speed doors yield lower long-term expenses in high-traffic environments due to streamlined mechanics, impact recoverability, and energy retention.
Table of Contents
A high speed door operates using a direct-drive motor system and a flexible or segmented rolling design. These doors eliminate complex hinge systems entirely. The curtain material typically consists of heavy-duty PVC fabric, reinforced styrene-butadiene rubber (SBR), or rigid double-walled aluminum slats. The curtain rolls up tightly around a motorized drum located directly above the door header.
Operational speeds define this category. These doors travel at speeds ranging from 30 to over 100 inches per second. This rapid movement drastically reduces the time a doorway remains open. We see these units installed heavily in food processing plants where washdown ratings matter. The direct-drive motors often utilize Variable Frequency Drives (VFD). A VFD allows the door to start slowly, accelerate rapidly through the middle of the cycle, and decelerate before hitting the floor. This soft-start and soft-stop capability prevents mechanical shock to the drive shaft. Primary use cases include interior facility partitions, cleanroom environments, cold storage active doorways, and high-traffic exterior loading docks.
A sectional door consists of hinged horizontal panels, typically made from 20- or 24-gauge steel or aluminum. The panels move vertically and then along ceiling-mounted tracks, supported by torsion springs, cables, and rollers. Sectional doors typically operate at 8–12 inches per second, with standard, high-lift, or vertical-lift track configurations depending on available space. Torsion springs provide the counterbalance and commonly have a limited cycle life, often around 10,000 cycles. These doors are best suited for overnight security, lower-cycle loading docks, and facilities that prioritize a strong thermal barrier.
High-throughput environments require continuous movement. Logistics hubs and manufacturing lines measure success by how quickly materials move from storage to the loading dock. A door must support this workflow without causing delays. When forklift operators have to stop and wait for a slow door to open, those idle seconds compound into hours of lost productivity over a month.
Sectional doors experience significant mechanical fatigue under high cycle loads. The torsion springs weaken with every open and close cycle. Rollers degrade as they travel along the steel tracks. Cables stretch over time. If a facility cycles a sectional door more than 50 times a day, component failure accelerates rapidly. Conversely, a High Speed Door features a continuous-duty rating. The springless design and direct-drive motor allow for hundreds of daily cycles without mechanical degradation. This continuous flow prevents staging area bottlenecks and improves overall material handling productivity.
Performance Metric | High Speed Door | Sectional Door |
|---|---|---|
Opening Speed | 30 to 100+ inches per second | 8 to 12 inches per second |
Daily Cycle Capacity | 100 to 1,000+ cycles | 10 to 50 cycles |
Spring Lifespan | N/A (Springless design) | 10,000 to 100,000 cycles |
Motor Duty Rating | Continuous Duty | Intermittent Duty |
Evaluating insulation requires understanding the difference between static and dynamic thermal control. Sectional doors provide an excellent static barrier. Manufacturers inject thick polyurethane or polystyrene foam between the steel panels. This construction delivers high R-values and low U-values. When a sectional door remains closed for hours, it effectively blocks heat transfer.
Static insulation loses its value the moment the door opens. In an active warehouse, a slow-moving sectional door allows massive amounts of conditioned air to escape. This is where the dynamic insulation of a high speed door excels. By minimizing the open door time, rapid cycle speeds prevent HVAC loss and cross-contamination. Even if a fabric door has a lower static R-value than a steel panel, the sheer speed of the open-and-close cycle retains more conditioned air during active shifts. Cold storage facilities rely on this dynamic efficiency to prevent frost build-up on the floors and maintain strict temperature zones.
Architectural footprints dictate which door systems a building can physically accommodate. Sectional doors demand significant ceiling clearance. The horizontal tracks must extend deep into the facility, mirroring the height of the door. This track system often interferes with overhead cranes, high-bay lighting, fire suppression sprinklers, and HVAC ductwork.
High speed doors solve this spatial problem. The entire door curtain coils tightly around the header drum. This design requires minimal backroom depth. The compact footprint makes them the superior choice for tight interior corridors, facilities with limited headroom, or older buildings undergoing retrofits where ceiling space is already occupied by existing mechanical, electrical, and plumbing (MEP) infrastructure.
When conducting a site survey for spatial constraints, follow these measurement steps:
Measure the clear opening width and height from the finished floor to the header.
Measure the side room available on both the left and right sides for motor mounting and guide tracks.
Measure the headroom from the top of the opening to the lowest ceiling obstruction.
Measure the backroom depth required for horizontal tracks if considering a sectional unit.
Security and weather needs vary by facility. Steel sectional doors offer strong forced-entry resistance for exterior and overnight security, while fabric high-speed doors provide less protection. Rigid aluminum high-speed doors combine fast operation with better security. For exposed loading docks, reinforced high-speed doors with wind struts and deep side guides perform better in severe wind conditions than standard sectional doors.
Security and weather requirements vary by facility. Heavy-duty steel sectional doors provide strong forced-entry resistance, making them suitable for exterior perimeters and overnight security. Fabric high-speed doors offer less intrusion protection, while rigid aluminum high-speed doors combine fast operation with greater security. For exterior applications, sectional doors resist wind well when closed but may bind during operation in high winds. Heavy-duty high-speed doors with reinforced wind struts and deep side guides are better suited for exposed loading docks and severe weather conditions.
Initial cost is an important factor in facility upgrades. Sectional doors typically require a lower upfront investment because they use standardized materials and familiar installation methods. They also offer flexible design options, including vision windows, custom colors, and panel styles. High-speed doors cost more initially due to advanced motors, specialized curtain materials, control systems, and more complex installation requirements. However, comparing these systems based only on upfront cost can overlook their long-term operational value.
Over the life of an industrial door, maintenance costs can exceed the initial installation expense. Sectional doors contain high-wear components such as torsion springs, lifting cables, hinges, and rollers that require regular maintenance and replacement. High-speed doors have a simpler design that eliminates many of these components, while VFD motors provide soft starts and stops to reduce mechanical wear. Although replacement parts may cost more, fewer component failures can reduce long-term maintenance costs and emergency service calls.
Maintenance Task | High Speed Door | Sectional Door |
|---|---|---|
Spring Tension Adjustment | Not Applicable | Every 6-12 Months |
Roller and Hinge Lubrication | Not Applicable | Every 3-6 Months |
Cable Inspection | Not Applicable | Every 6 Months |
Sensor Alignment Check | Every 6 Months | Every 6 Months |
Track Cleaning | Every 12 Months | Every 6 Months |

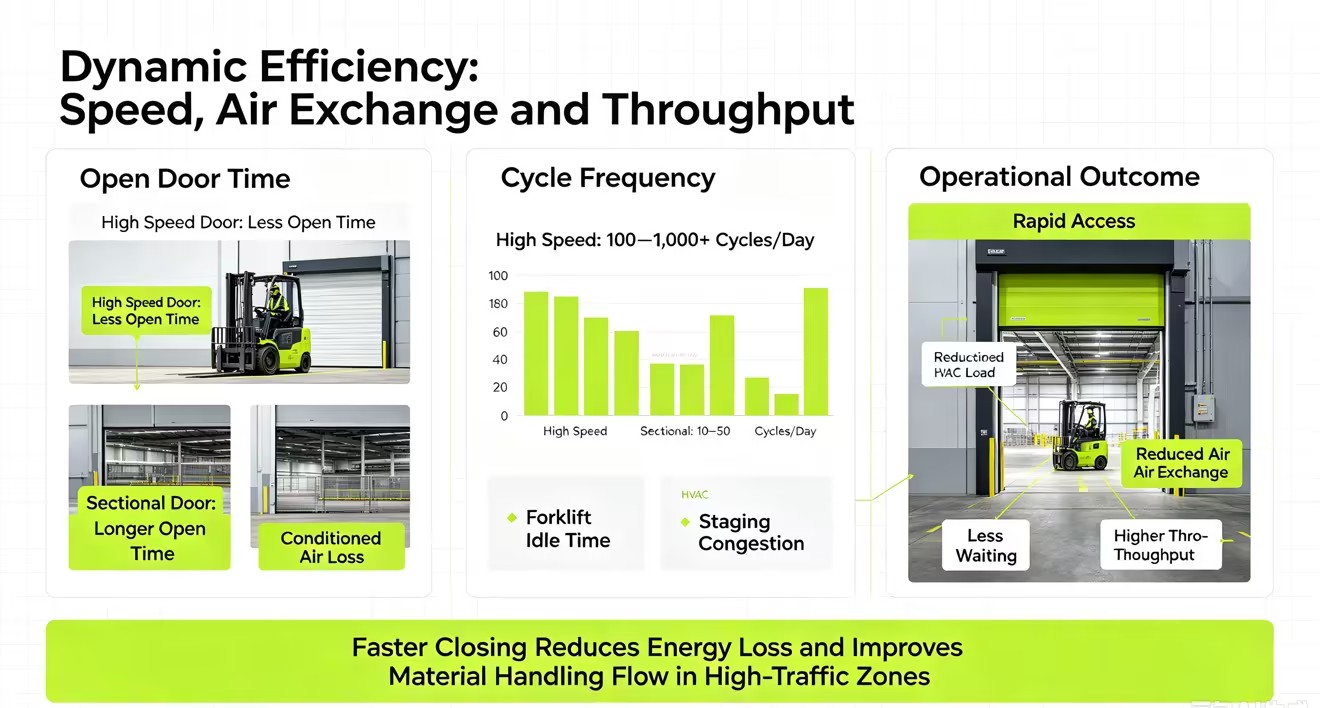

Energy retention provides a measurable return on investment. Every second an exterior door remains open, the facility's HVAC system consumes energy to re-condition the air. By cutting the open-door time by up to 80%, high speed doors noticeably reduce monthly heating and cooling bills. You can model these savings based on your local climate and daily door cycles.
Regained labor hours also contribute to the ROI. When forklift operators wait ten seconds for a sectional door to open, those seconds compound. Ten seconds per cycle across 100 cycles equals over 16 minutes of idling per day, per door. Eliminating this wait time increases the number of pallets moved per shift. The combined savings from reduced energy consumption, lower maintenance demands, and increased productivity often offset the higher upfront cost of a high speed door within the first few years of operation.
Installing high-speed doors requires careful structural and electrical planning. Their weight and motor torque place significant loads on the header, so the wall structure must be strong enough to support the system. Heavy-duty doors may require reinforced steel frames rather than mounting directly to drywall or thin metal. Electrical requirements also vary: while standard sectional doors often use single-phase 120V or 240V power, high-performance direct-drive motors may require 3-phase 208V, 230V, or 460V power. Facility managers should therefore verify both structural support and electrical capacity before selecting a door system.
Industrial doors must comply with OSHA guidelines and internal facility safety standards. The speed of a rapid-roll door introduces different safety dynamics compared to a slow-moving sectional door. Sectional doors typically rely on basic photo-eye sensors mounted near the floor and mechanical reversing edges.
High speed doors require advanced sensor integration to prevent high-speed impacts with personnel or equipment. Standard safety features often include full-height light curtains embedded in the side guides. These light curtains detect any object passing through the threshold and instantly reverse the door. Motion radars and soft-bottom edges provide additional layers of safety, ensuring the door reacts immediately to obstructions.
Certain operational triggers clearly indicate the need for a rapid-cycle solution. You should specify a high speed door if your facility meets the following criteria:
The doorway experiences more than 50 open/close cycles per day.
Strict climate control is required during active operational hours.
The environment demands cleanroom standards to prevent dust and airborne contaminants.
The facility has limited ceiling headroom, preventing the installation of horizontal tracks.
The doorway is located in a high-traffic zone with a history of frequent forklift collisions.
Traditional panel doors remain the best choice for specific applications. You should specify a sectional door if your facility aligns with these parameters:
The doorway experiences fewer than 20 cycles per day.
The primary operational need is overnight physical security and static weather resistance.
Initial build-out budgets are tightly constrained.
The doorway is customer-facing and requires specific architectural aesthetics or large vision windows.
The facility requires maximum static insulation for long-term storage where doors remain closed for days at a time.
Many facilities do not have to choose just one technology. Installing both systems on a single dock opening offers a highly effective hybrid approach. In a tandem setup, a high speed door is mounted on the interior wall of the opening, while a heavy-duty sectional door is mounted on the exterior.
During active daytime shifts, the exterior sectional door remains completely open. The interior high speed door handles all the traffic, providing rapid access, dynamic climate control, and pest exclusion. At the end of the shift, the facility lowers the exterior sectional door. This provides maximum overnight security, severe weather protection, and static thermal insulation. This dual-door strategy delivers the best operational benefits of both systems.
To finalize your facility's door selection and ensure optimal operational flow, execute the following steps:
Conduct a facility traffic audit over a 48-hour period to calculate the exact daily cycle count for each specific doorway.
Measure your available ceiling headroom, side room, and backroom depth to identify any overhead obstructions like HVAC ducts, fire sprinklers, or crane rails.
Audit your current annual maintenance logs to quantify existing repair expenses and downtime caused by forklift impact damage.
Verify your building's electrical capacity at the door location to determine if you have the 3-phase power required for high-performance direct-drive motors.
Consult with a commercial door specialist to specify the exact motor type, curtain material, and sensor integration required for your environmental demands.
A: Yes, the initial installation cost of a high speed door is generally higher due to advanced motor technology and specialized materials. However, they often cost less over their lifespan. The reduction in maintenance, fewer wear parts, and significant energy savings typically offset the higher upfront investment in high-traffic facilities.
A: Yes, retrofitting is very common. High speed doors require less ceiling space, making them easy to fit into areas where sectional tracks currently exist. You must ensure the wall header can support the motor weight and verify that your facility can supply the necessary electrical power, often 3-phase.
A: High speed doors are usually better for active cold storage. While sectional doors have better static insulation, they let out massive amounts of cold air when open. Insulated high speed doors close immediately after a forklift passes, minimizing dynamic air loss and reducing the load on refrigeration systems.
A: High speed doors require significantly less routine maintenance. They lack the high-wear mechanical parts found in sectional doors, such as torsion springs, steel cables, and hinges. Routine checks on sensors and motor lubrication are needed, but catastrophic mechanical failures are rare.
A: Generally, yes. Heavy-duty steel sectional doors provide superior forced-entry resistance compared to standard fabric high speed doors. If security and speed are both required, rigid aluminum high speed doors offer a highly secure alternative that resists break-ins while maintaining rapid cycle times.
A: Hitting a sectional door usually causes permanent damage. The steel panels dent, and the rollers derail, requiring professional repair and causing downtime. Most fabric high speed doors feature break-away bottom bars. Upon impact, the door dislodges, rolls up, and automatically resets into the tracks without permanent damage.
