PD-HSPD
PANDA
7308300000

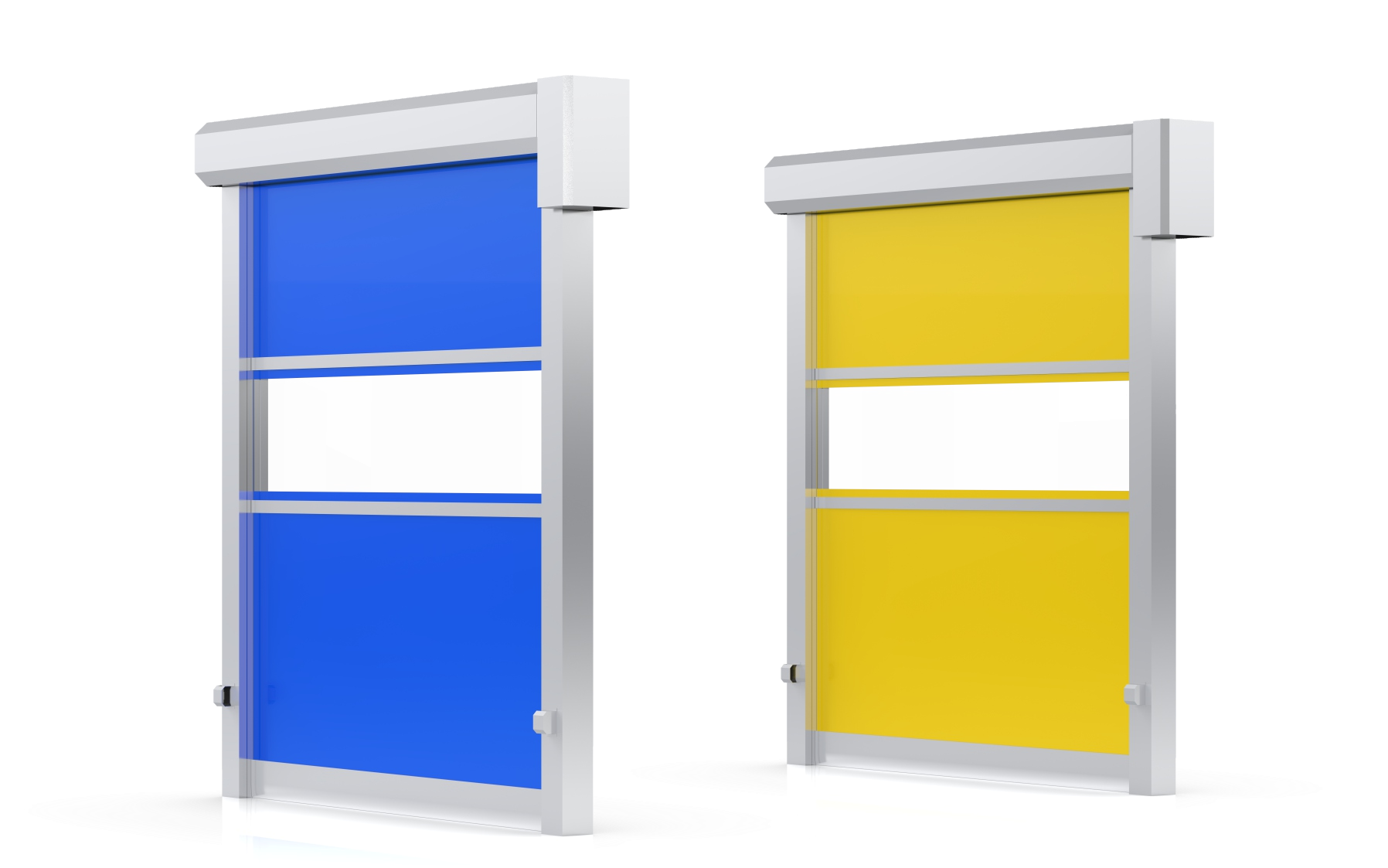

Our high speed PVC door is designed for fast and frequent operation in industrial environments. It improves workflow efficiency while helping control dust, insects, and air flow between different working areas.

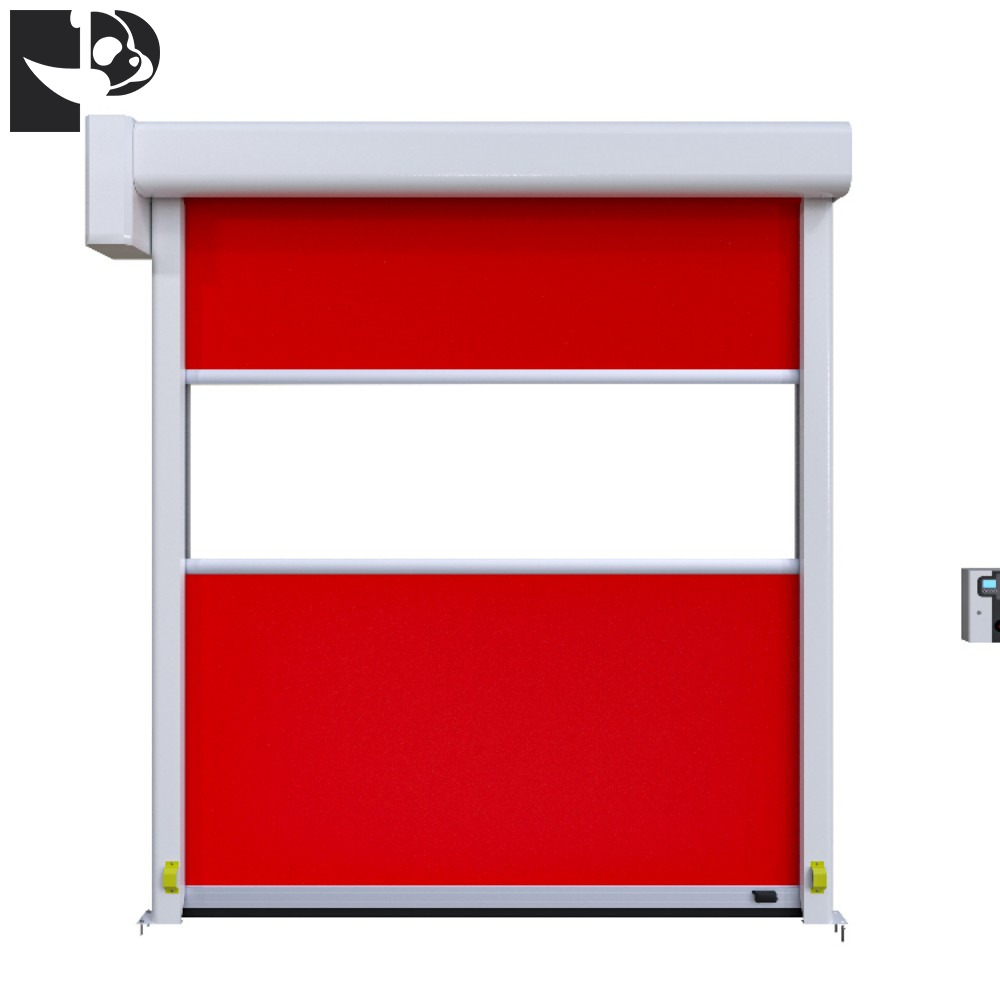

A high speed PVC door is a flexible rapid roll up door used in industrial environments where fast access and frequent opening are required.
Compared with rigid industrial doors, PVC doors are lighter, more economical, and better suited for internal applications such as workshops, warehouses, and clean areas.
It provides efficient isolation between zones while maintaining smooth logistics flow.
The door opens and closes quickly to reduce waiting time for personnel, forklifts, and goods movement, improving overall operational efficiency.
The PVC curtain creates an effective barrier to reduce dust, insects, and unwanted air exchange between working areas.
The flexible curtain structure allows repeated opening and closing, making it suitable for busy industrial environments.

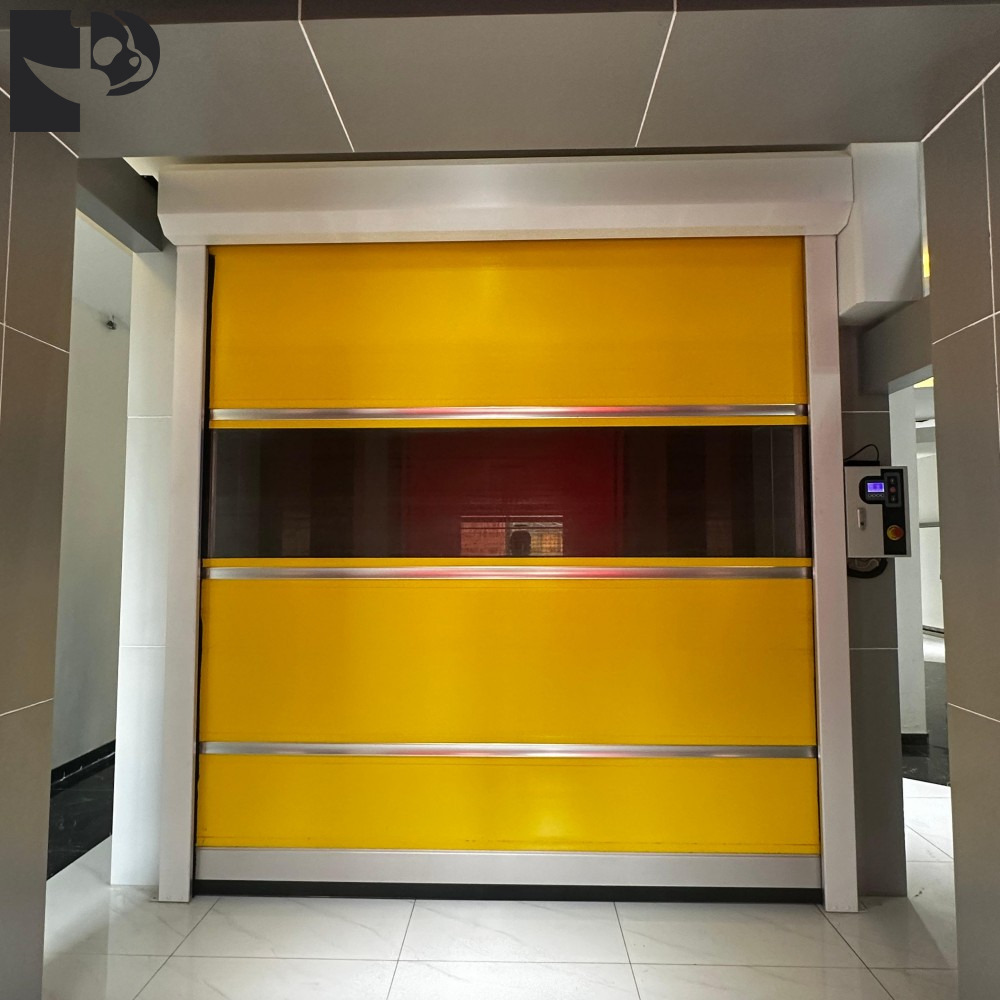

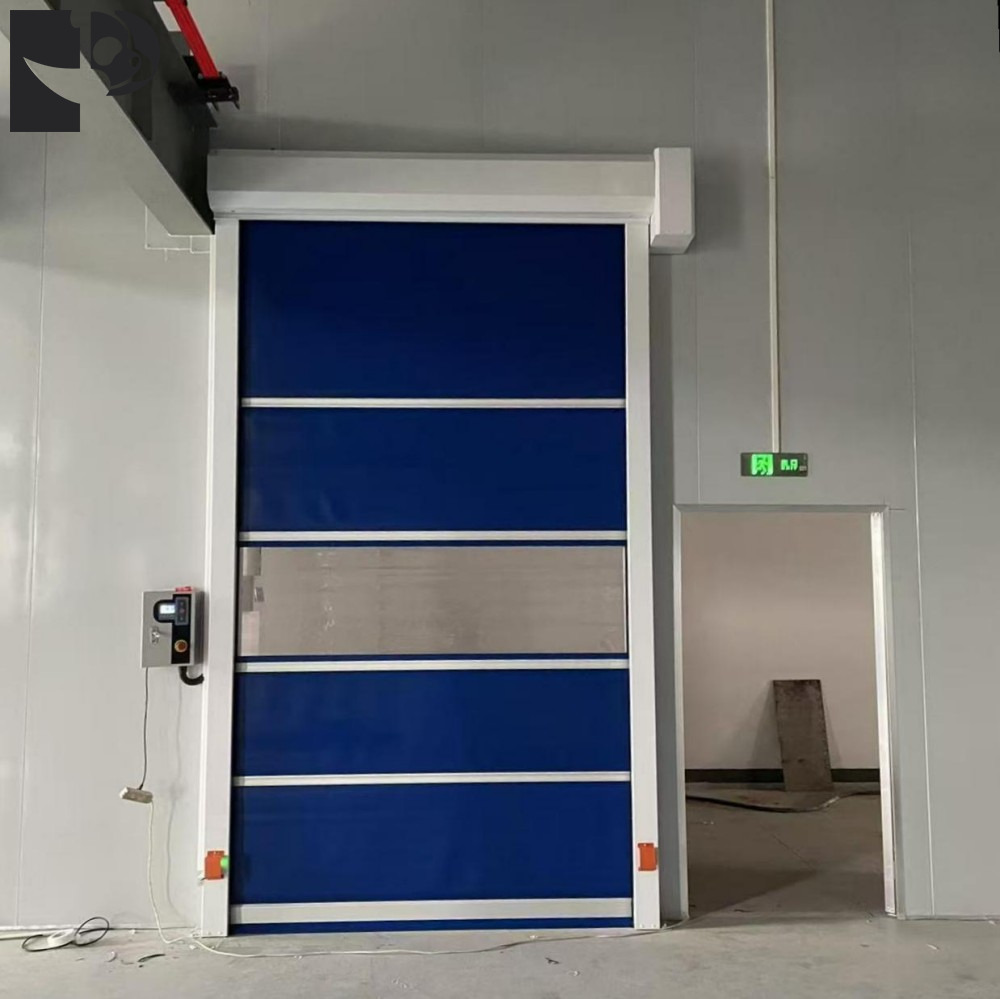

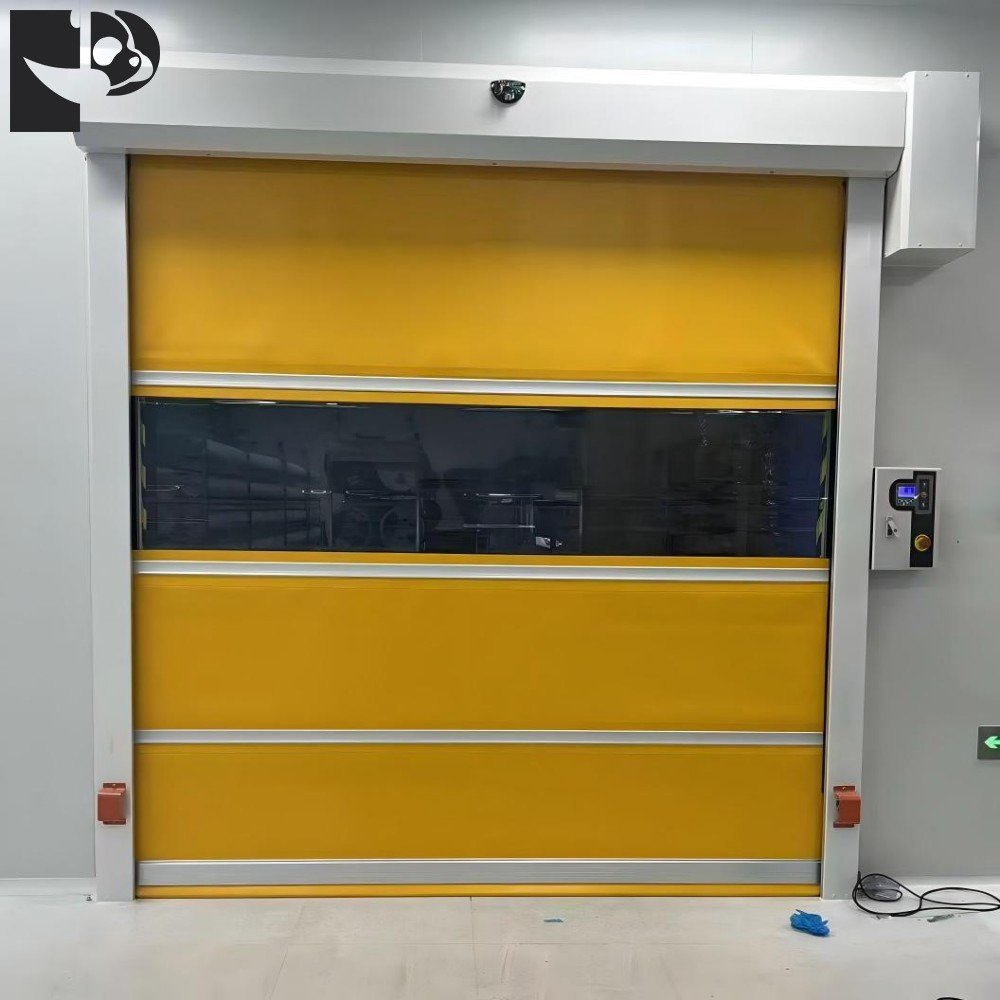

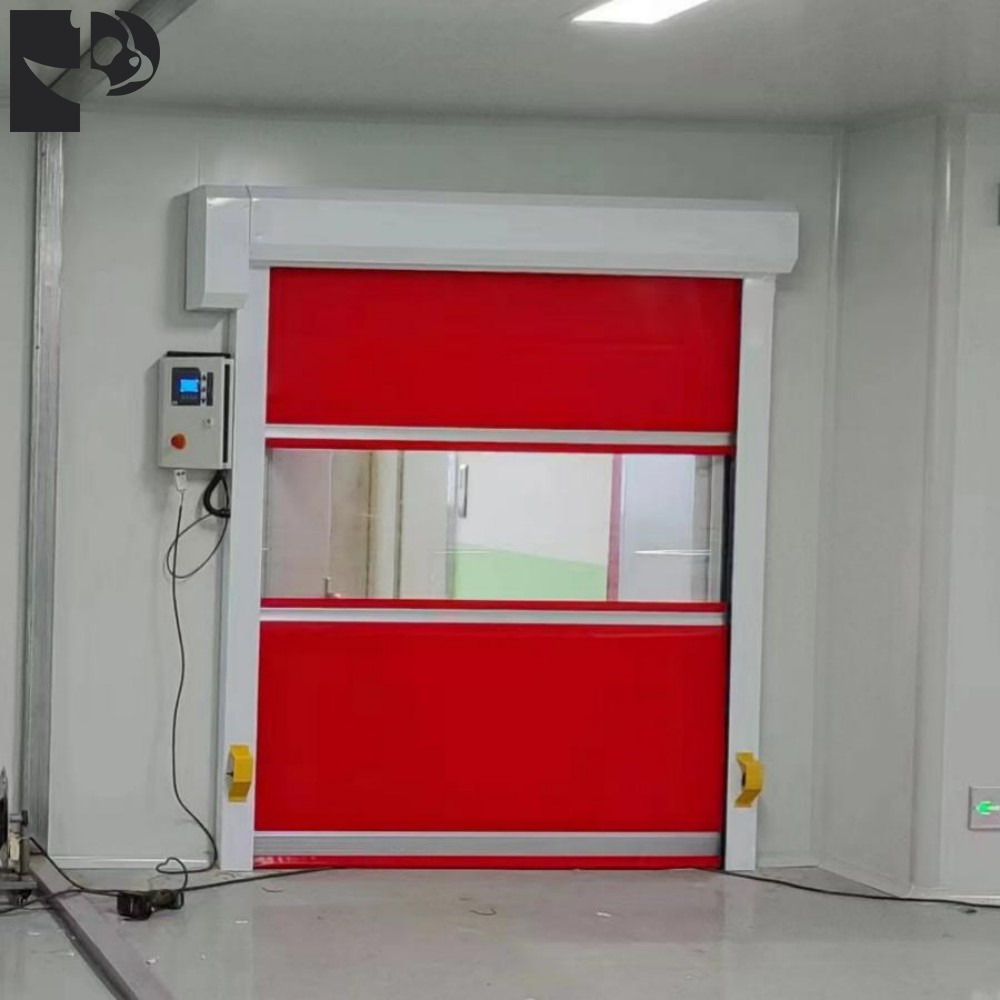

This door is widely used for separating internal zones such as workshops, storage areas, and underground garage passages.
Warehouse internal passages
Production workshops
Electronics manufacturing facilities
Food processing plants
Hospitals and pharmaceutical environments
Textile factories
Clean workshops
Underground garage access
The high speed PVC door is designed with a stable and practical structure to ensure reliable operation in industrial environments.
Drive motor system (top-mounted or side-mounted)
Galvanized or stainless steel door frame
Flexible PVC curtain with reinforcement bars
Transparent vision window for safety
Infrared safety sensor system
Aluminum alloy bottom beam for stable closing

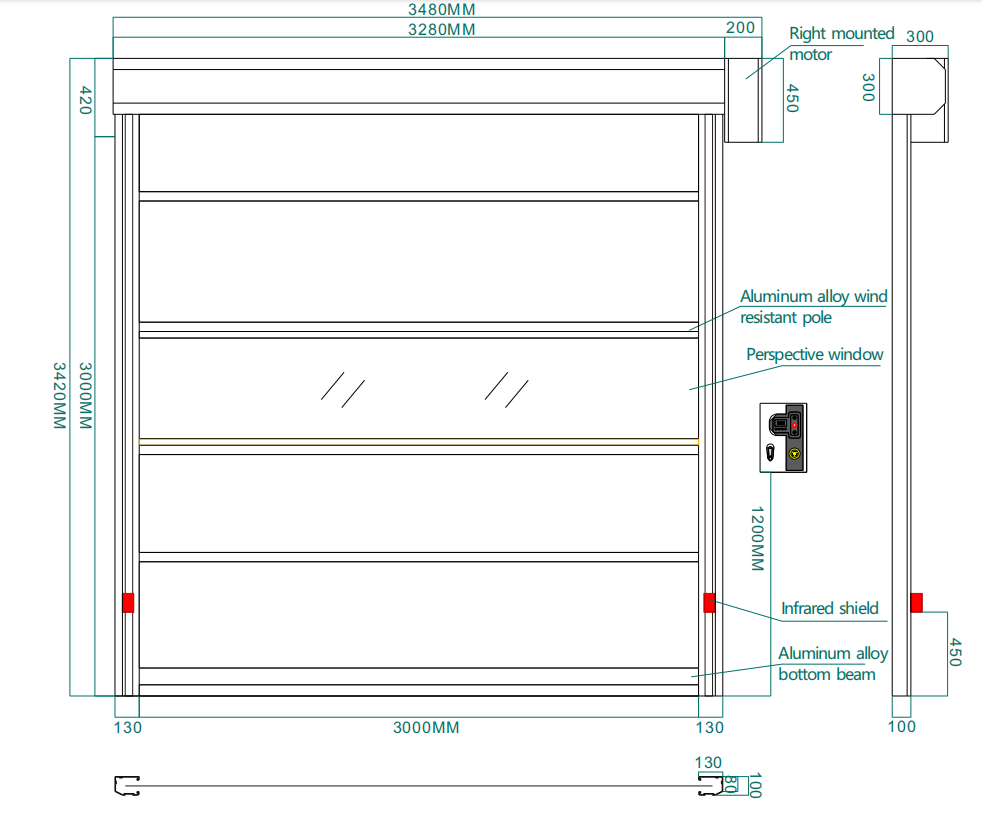

Item | Dimension | Notes |
|---|---|---|
Overall Width | 3480 mm | Total outer width shown in the drawing |
Inner Top Width | 3280 mm | Inner top structural width |
Clear Opening Width | 3000 mm | Effective passage width |
Overall Height | 3420 mm | Total outer height shown in the drawing |
Clear Opening Height | 3000 mm | Effective passage height |
Headroom | 420 mm | Top installation space on the main structure |
Motor Side Height Allowance | 450 mm | Space reserved on motor side |
Top Extra Space | 200 mm | Top-side structural allowance near motor area |
Side Space (Left) | 130 mm | Required installation space on the left side |
Side Space (Right) | 130 mm | Required installation space on the right side |
Right Bottom Side Space | 100 mm | Additional right-side bottom structural dimension shown in drawing |
Motor Mount Size | 300 × 300 mm | Right-mounted motor space shown in side view |
Control Box Height | 1200 mm | Approximate installation height from floor |
Infrared Sensor Height | 450 mm | Approximate sensor position from floor level |
Motor position: Right mounted motor
Guide structure: Aluminum alloy wind resistant pole
Viewing section: Perspective window
Bottom structure: Aluminum alloy bottom beam
Safety system: Infrared shield
Customization: Final dimensions can be adjusted based on actual opening size and project requirements
Note: Dimensions shown above are for reference only. Final door size, motor position, and installation space can be customized according to site requirements.
The flexible curtain allows smooth and fast operation and is suitable for high-frequency use.

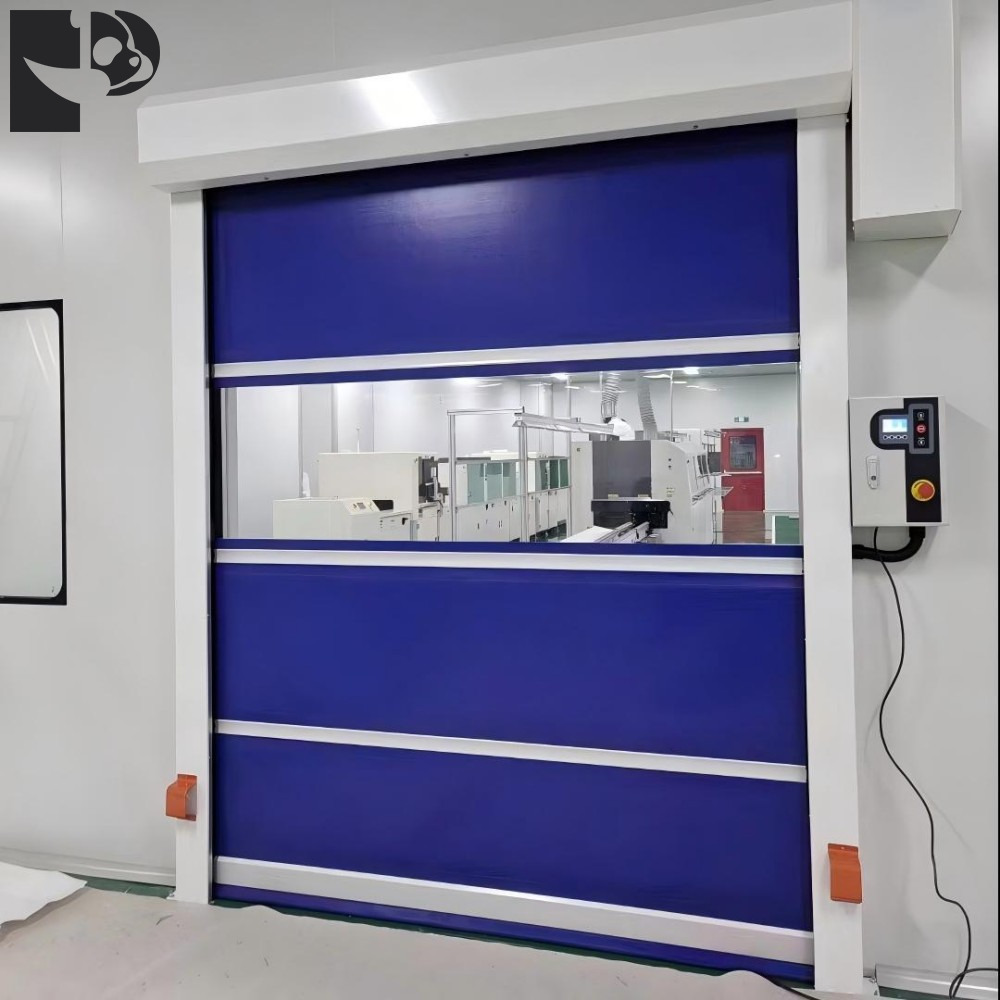

The transparent section improves visibility for both pedestrians and vehicles, enhancing safety during operation.
Available in galvanized steel, stainless steel, or spray-coated finishes for different environments.
Requires sufficient headroom for motor installation
Side space needed for frame and guide rails
Suitable for indoor wall openings and partition areas
Motor can be installed on left or right side
We support customized production based on your project requirements, including door size, frame material, color selection, and control systems.
This ensures the door fits your working environment and operational needs.
We focus on providing industrial door solutions for different working environments.
Each project can be customized according to installation size and application requirements.
We use durable materials and practical system design to ensure long-term operation.
Our products are widely used in logistics, manufacturing, food processing, clean rooms, and garage access projects.
It is mainly used for internal industrial access, improving workflow efficiency and separating working areas.
Yes, it is designed for frequent opening and closing in busy environments.
Yes, the door can be customized according to your installation opening.
Radar, photoelectric sensors, grating, and geomagnetic systems are available.
Yes, this model is suitable for underground garage passages and internal access areas.
