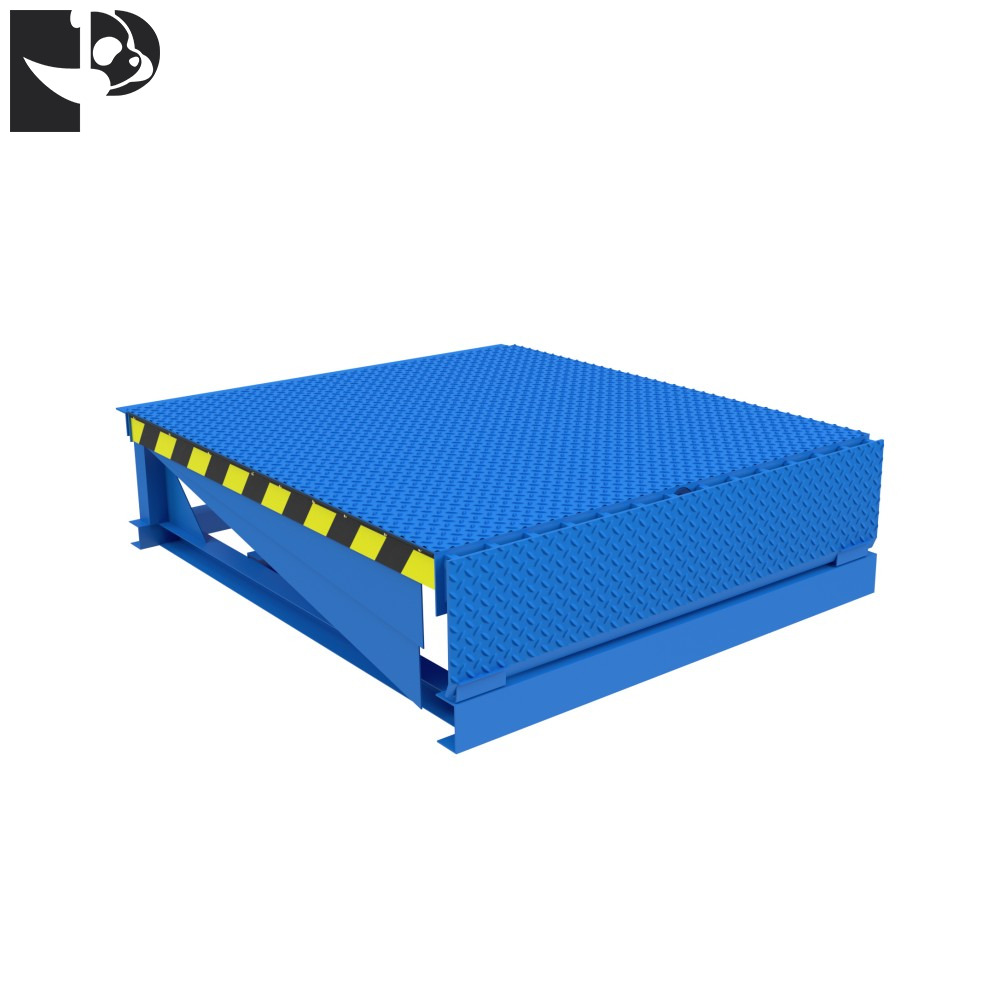

Hydraulic Dock Leveler

Standard Solution for Most Loading Needs
  • Simple structure, stable and durable
  • Standard working range (approx. ±300 mm)
  • Cost-effective and widely used
  • Easy operation with minimal training required
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • PD-FDL

  • PANDA

  • 8428909090

dock seals Dock Leveler loading dock equipment dock shelter industrial door
Product Introduction
Technical Parameters
FAQ

Product Uses

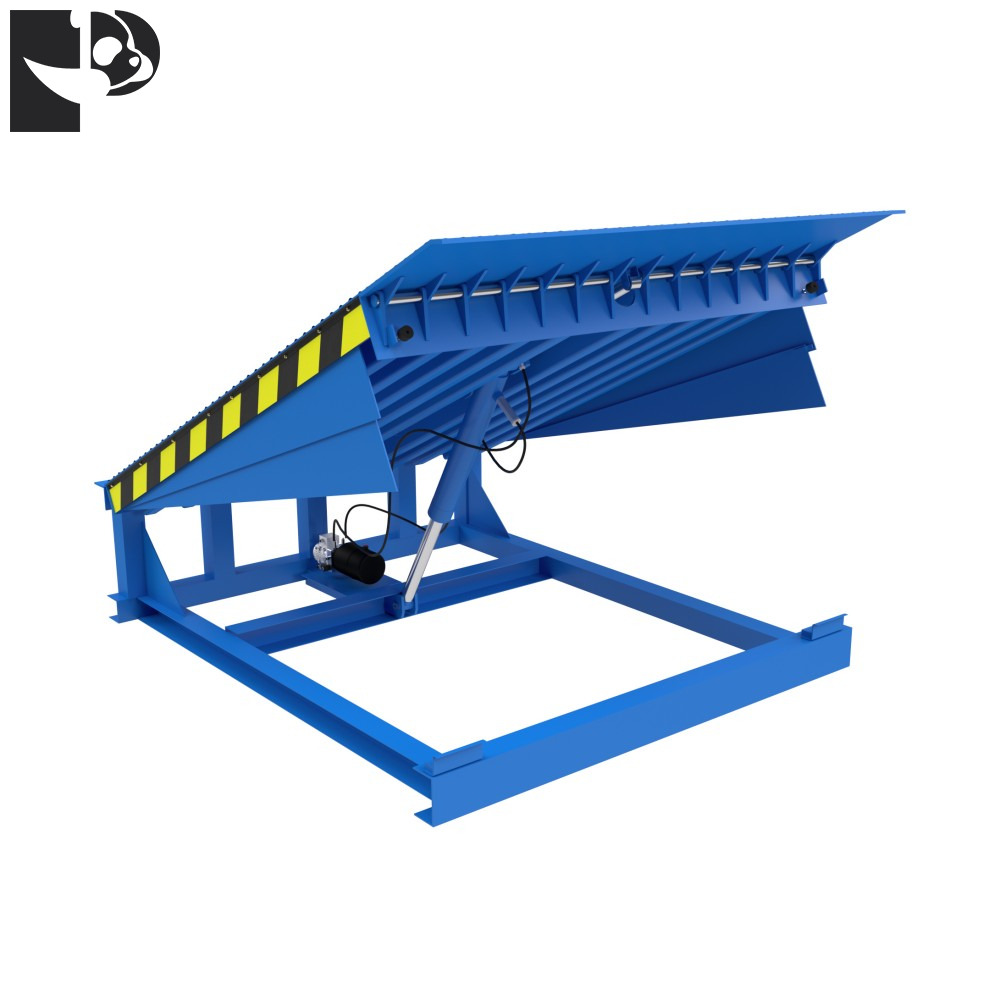

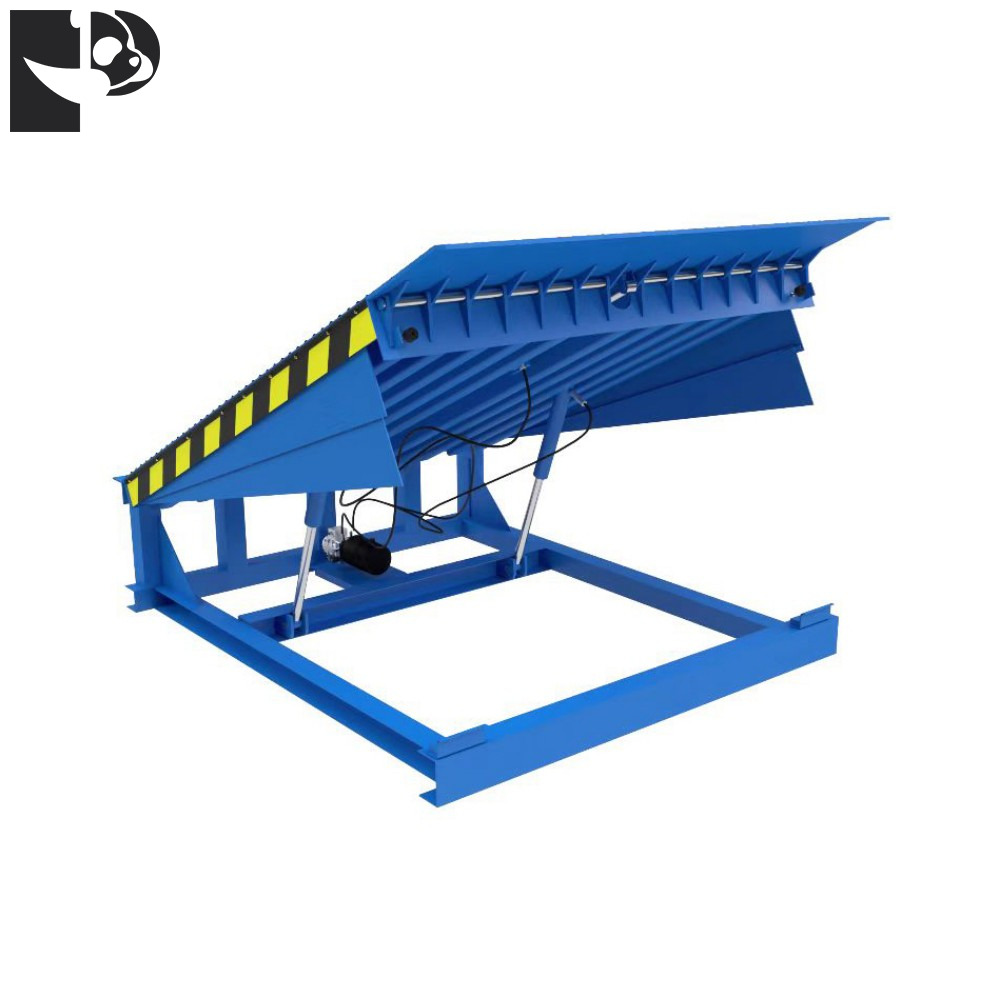

Taking a Folding Dock Leveler as an example, the platform tilt is achieved by a hydraulic cylinder. The tilt angle is usually adjustable between 7°–12°. After raising or lowering to the required position, the flap board is further adjusted via the hydraulic cylinder or electric push rod to align with the cargo truck or loading dock, forming a transitional slope that facilitates loading or unloading operations.

Product Advantage

  1. Material Selection: The main body is generally welded with high-strength steel to ensure sufficient strength and stability, capable of bearing heavy vehicles such as trucks and forklifts. The platform surface is usually equipped with anti-slip strips or steel plates to prevent cargo or personnel from slipping.

  2. Custom sizes, including non-standard dimensions, are available.

  3. Special shades can be customized.

  4. Anti-Corrosion Process: Shot blasting + electrostatic powder coating + hightemperature baking finish.



Specification Parameters

Equipment Size WxLEquipment Width WEquipment Length LEquipment Height HFoundation Pit Width PWFoundation Pit Length PLFoundation Pit Depth PD
W2000×L20002000/1800 mm2000 mm490–600 mmPW = W + 30PL = LPD = H + 10
W2000×L23002000/1800 mm2300 mm490–600 mmPW = W + 30PL = LPD = H + 10
W2000×L25002000/1800 mm2500 mm490–600 mmPW = W + 30PL = LPD = H + 10
W2000×L30002000/1800 mm3000 mm490–600 mmPW = W + 30PL = LPD = H + 10
W2000×L35002000/1800 mm3500 mm490–600 mmPW = W + 30PL = LPD = H + 10
W2000×L40002000/1800 mm4000 mm490–600 mmPW = W + 30PL = LPD = H + 10

Load Capacity and Type Selection

Dynamic LoadMain Board ThicknessPanel Reinforcement StripsLip Plate ThicknessBase FrameStatic LoadForklift Usage Scope
6T6 mm4 mm U/C-shaped steel12 mm10# Channel steel9T2.5-ton forklift
8T8 mm4 mm U/C-shaped steel14 mm10# Channel steel12T3.5-ton forklift
10T8 mm14# I-beam16 mm10# Channel steel15T4.5-ton forklift

Notes

  • Large load capacity can be customized upon request

  • Custom sizes (including non-standard) are available

  • Dynamic load: load when forklift is moving on the platform

  • Static load: load when platform is closed and forklift is stationary

  • Anti-corrosion: Shot blasting + powder coating + high-temperature baking

  • Optional configurations:

    • Single hydraulic cylinder (X1)

    • Double hydraulic cylinders (X2)


What is the price of your products?

The price varies depending on the model, specifications, and order quantity. Please share your detailed requirements (e.g., dimensions, load, quantity, additional features), and we will provide you with a detailed quotation.

Can you customize the products based on customer requirements?

Yes, we offer customization services, including size, color, logo branding, and functional configurations. Just provide your detailed requirements, and our engineers will design the optimal solution for you.

Can I customize the logo and packaging?

Yes, we can customize products based on your design and packaging requirements. Please send your detailed requirements to us.

What is the MOQ for customized products?

The minimum order quantity for customized products is typically one unit. However, it may vary based on the complexity and cost of the design. Please confirm with us for specific details.
