PD-TDL
PANDA
8428909090
Product Uses

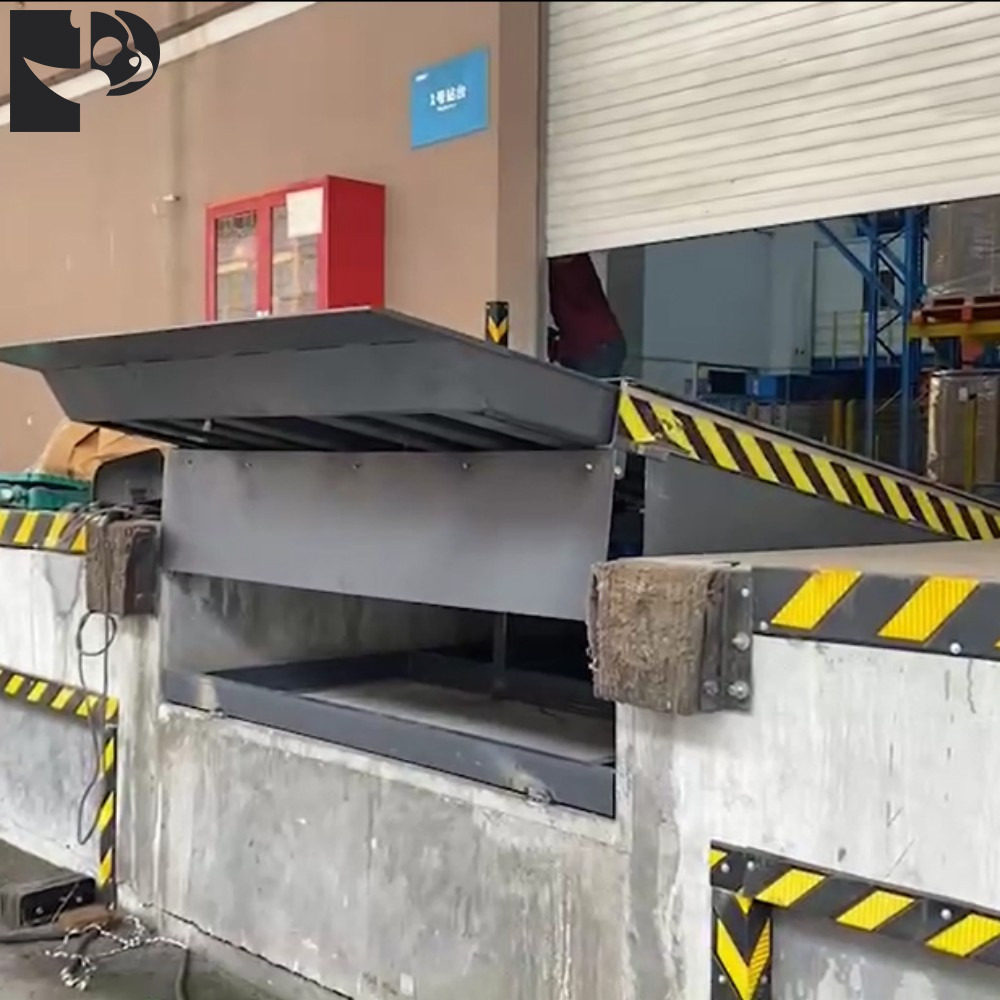

It is mainly used to address gaps during cargo loading and unloading in logistics, warehousing, and industrial operations, or as an auxiliary tool to temporarily expand the working space.
1. Improved Loading and Unloading Efficiency: Eliminates gaps or height differences between the platform and vehicles. Forklifts or hand carts can drive directly into the vehicle, reducing manual handling steps.
2. High Adaptability: The telescopic length can be adjusted automatically or manually according to the type of truck (e.g., box truck, container), making it compatible with different vehicle models.
3. Enhanced Safety: Equipped with anti-slip surfaces, cushioning devices, and guardrails to reduce the risk of cargo falling or personnel accidents.
4. Space-Saving: Can be retracted to a fixed position when not in use, occupying no additional operational space, making it ideal for areas with limited space.
Specification Parameters
| Equipment Size WxL | Equipment Width W | Equipment Length L | Equipment Height H | Foundation Pit Width PW | Foundation Pit Length PL | Foundation Pit Depth PD | Extended Length |
|---|---|---|---|---|---|---|---|
| W2000×L2000 | 2000 mm | 2000 mm | 490–600 mm | PW = W + 30 | PL = L | PD = H + 10 | 1000 mm |
| W2000×L2300 | 2000 mm | 2300 mm | 490–600 mm | PW = W + 30 | PL = L | PD = H + 10 | 1000 mm |
| W2000×L2500 | 2000 mm | 2500 mm | 490–600 mm | PW = W + 30 | PL = L | PD = H + 10 | 1000 / 1200 mm |
| W2000×L3000 | 2000 mm | 3000 mm | 490–600 mm | PW = W + 30 | PL = L | PD = H + 10 | 1000 / 1200 mm |
| W2000×L3500 | 2000 mm | 3500 mm | 490–600 mm | PW = W + 30 | PL = L | PD = H + 10 | 1000 / 1200 mm |
| W2000×L4000 | 2000 mm | 4000 mm | 490–600 mm | PW = W + 30 | PL = L | PD = H + 10 | 1000 / 1200 mm |
| W2000×L5000 | 2000 mm | 5000 mm | 490–600 mm | PW = W + 30 | PL = L | PD = H + 10 | 1000 / 1200 mm |
Load Capacity and Type Selection
| Dynamic Load | Main Board Thickness | Panel Reinforcement Strips | Lip Plate Thickness | Base Frame | Static Load | Forklift Usage Scope |
|---|---|---|---|---|---|---|
| 8T | 8 mm | Rectangular tube (80×120 mm / 100×150 mm) | 14 / 16 mm | 10# Channel steel | 10T | 3.5-ton forklift |
Special sizes can be customized upon request
Anti-corrosion process: Shot blasting + electrostatic powder coating + high-temperature baking
Optional configurations:

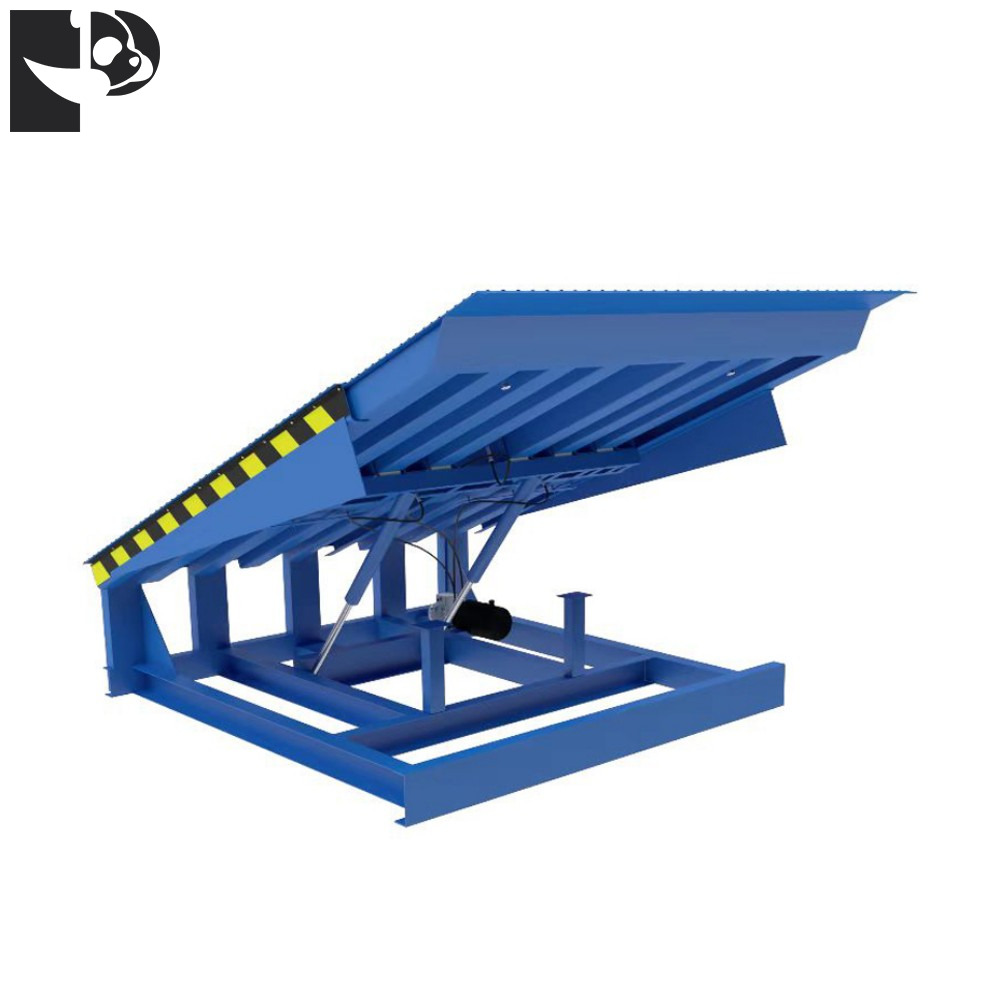

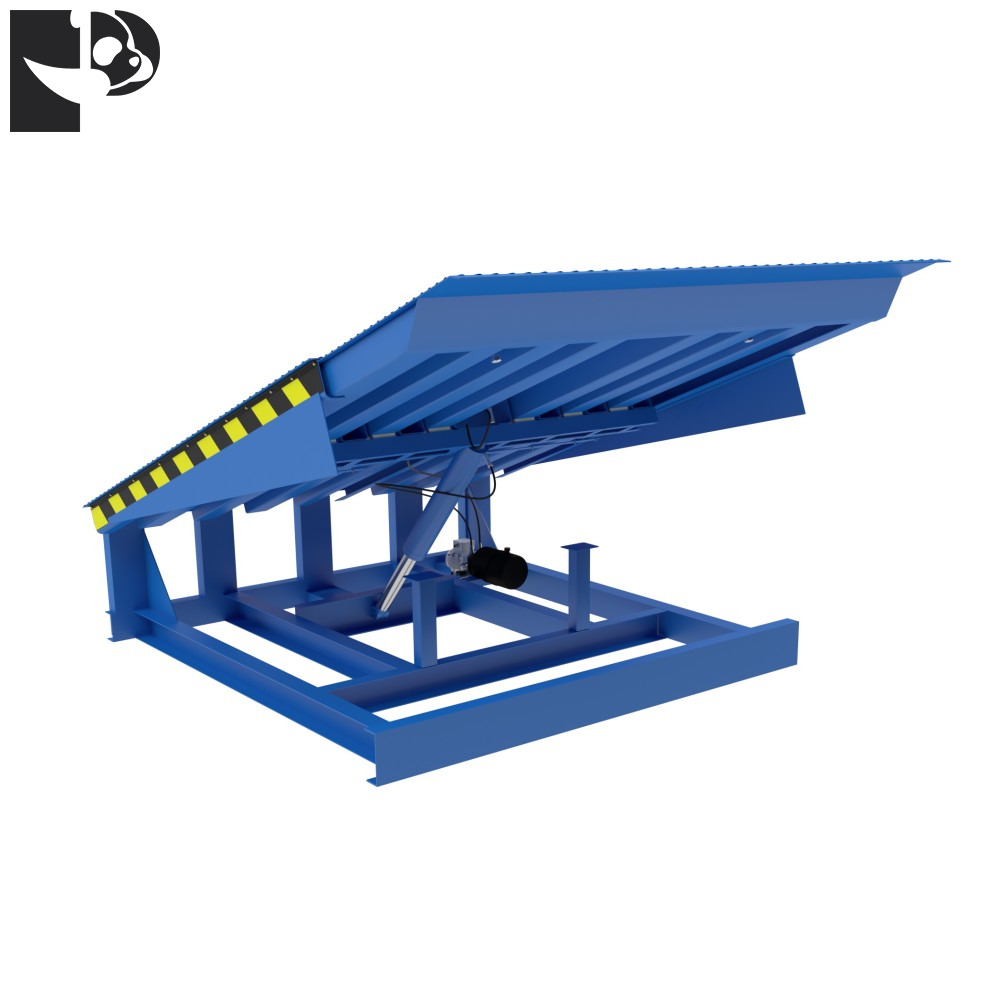

Single hydraulic cylinder (X1)
Double hydraulic cylinders (X2)
The price varies depending on the model, specifications, and order quantity. Please share your detailed requirements (e.g., dimensions, load, quantity, additional features), and we will provide you with a detailed quotation.
We can provide samples for testing, but due to the high cost and large size, sample and shipping fees are customer-covered.
Our products are made of high-quality steel and manufactured using advanced production techniques. They undergo strict quality control processes (ISO9001). We also offer a 1-year warranty for your peace of mind.
The standard thickness of our dock leveler’s main board is 6/8mm, and the lip plate is 12/14/16mm. We can provide customized thickness to meet specific load and usage requirements.
